S-Sub
The Magico S-SUB employs a pair of front-firing 13” drivers engineered specifically for this application. This drive unit features a two-layer 75mm voice coil with 0.6” of linear excursion in both directions, delivering powerful, low-distortion bass. The driver is rated at 550W RMS (continuous) with even greater capability at peak output. A super-stiff aluminum cone provides an ideal balance of rigidity and low mass, while an advanced motor system—with multiple copper shorting rings—ensures a highly stabilized magnetic field, reduced inductance variation, and minimal distortion. To support extreme linear travel, the spider incorporates woven-in tensile wires. The result is a driver optimized for maximum SPL with vanishingly low distortion.
The S-SUB’s enclosure was engineered through a combination of advanced computer simulation and rigorous physical testing to meet Magico’s uncompromising standards for rigidity, durability, and acoustic neutrality. Finite Element Analysis (FEA) guided the optimization of all structural elements, followed by extensive prototyping to confirm and refine the design. This R&D effort produced a thick, aluminum cabinet featuring innovative bracing and the most advanced damping materials available—yielding an enclosure with virtually no audible contribution.
Make it stand out

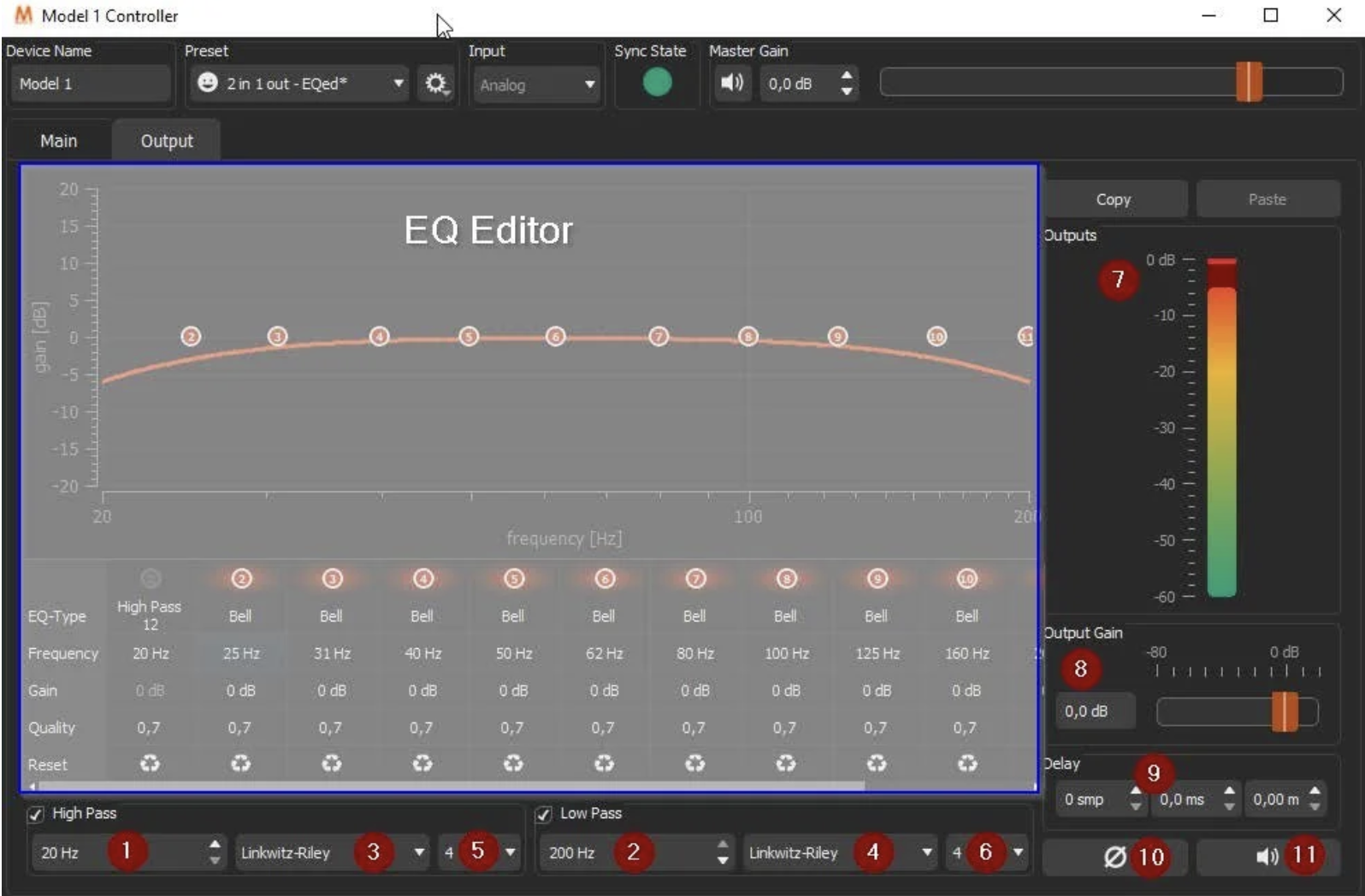

A high-power class-D amplifier delivers 2250W / 2500W (120V / 230V), providing substantial dynamic headroom. State-of-the-art DSP software enables precise calibration to the listening room and seamless integration with the associated speaker system. Users can access multiple EQ presets, auto-on detection, auto-off functions, and comprehensive clipping and thermal protection. All adjustments are made through a streamlined, network-based interface.Whatever it is, the way you tell your story online can make all the difference.
Output: Capable of delivering 120dB sound pressure level (SPL) with less than 1% total harmonic distortion at 40Hz.
Driver complement: 2 x 13”.
Frequency response: 15Hz—150Hz.
Amplifier power: 2250W on 120V, 2500W on 230V.
Input impedance: 45k ohms.
Dimensions: 31.9”H x 19.25”D x 15.31”W.
Weight: 250 pounds.
